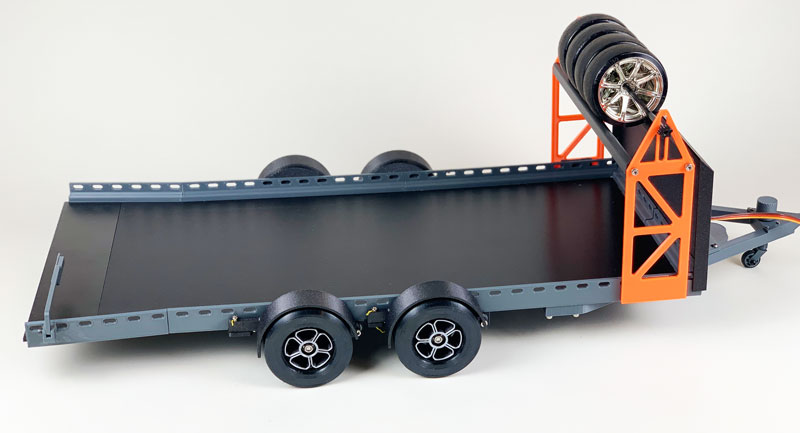

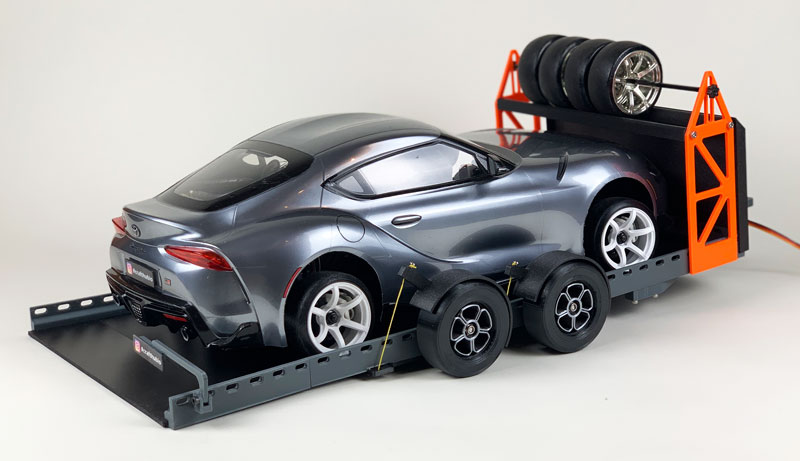

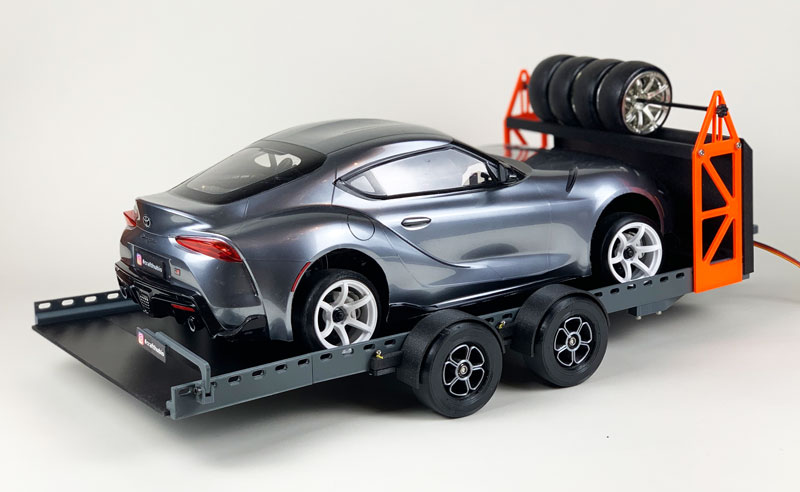

For all 1/10 scale Drift cars and 1/10 4wd crawlers for towing.
Even a very low downed drift car , you can carry on without any slopes.

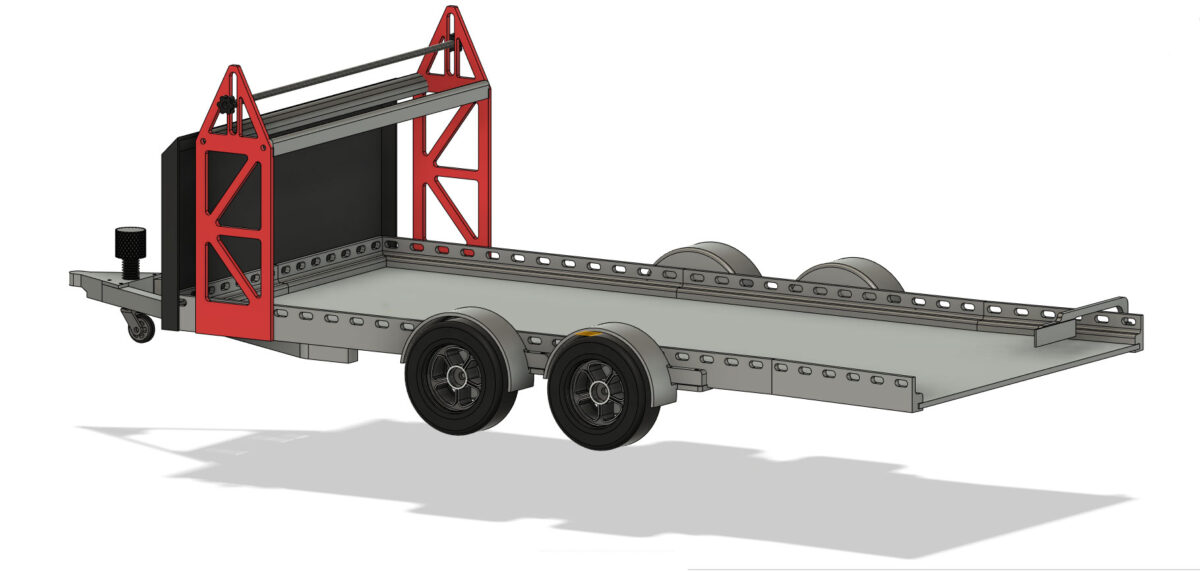

STL data Realistic full functional model.
Design and spec
•Easy to assemble
•Optimized for 1/10scale RC Drift car. Ex Yokomo,Sakura, MST,etc.
•FDM printer with 0.4φOrifice nozzle.
•PLA or PETG can be used, in however summer season for outdoor use, I recommend
using PETG
•TPU for tires
Parts for printing out with PLA or PETG
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Slide5-1-e1655190814907.png)
Parts for printing out TPU
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Slide6-e1655191061234.png)
BOM list (Exel file)
Assemble1
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer8-e1655192206505.png)
Assemble2
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer9-e1655192137912.png)
Assemble3
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer10-e1655191977458.png)
Assemble4
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer11-e1655191953225.png)
Assemble5
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer12-e1655191927325.png)
Assemble6
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer13-e1655191905612.png)
Assemble7
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer14-e1655191879363.png)
Assemble8
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer15-e1655191853148.png)
Assemble8-2
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/ballend.jpg)
Yokomo 4.8mmφ Ballend can use a tow vehicle coupler.
Assemble9
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer17-e1655191808567.png)
Assemble10
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer18-e1655191774749.png)
Assemble each of 4 axes. For smooth rotation of the tire, you can adjust it with a washer.
Assemble11
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer19-e1655191727555.png)
Assemble12
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer20-e1655191703599.png)
Assemble13
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer21-e1655191670932.png)
Assemble14
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer22-e1655191643379.png)
Assemble15
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer24-e1655191575930.png)
Assemble16
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer25-e1655191534467.png)
Assemble17
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer26-e1655191496920.png)
Assemble18
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/20-1024x545.jpg)
Mount the Tire rack use with double side tape.
Take attention to the Tire rack direction.

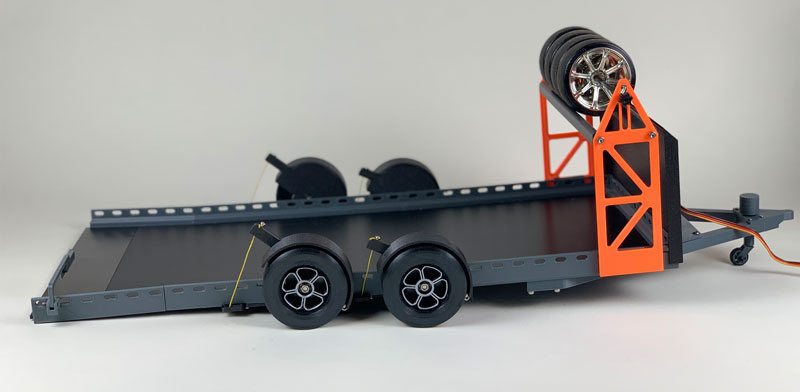

Retract mechanism
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/IMG_3592-1024x768.jpg)
M3*8 screw
Hangingwire0.8mm
28servohorn.stl
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer29-e1655197194198.png)
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Lowering-Trailer30-e1655197256679.png)
Running the wire like that and adjusting the tension.
![](https://www.crafthub.tokyo/wp-content/uploads/2022/06/Slide31-e1655197415836.png)
Adjust the wire length and fix it.

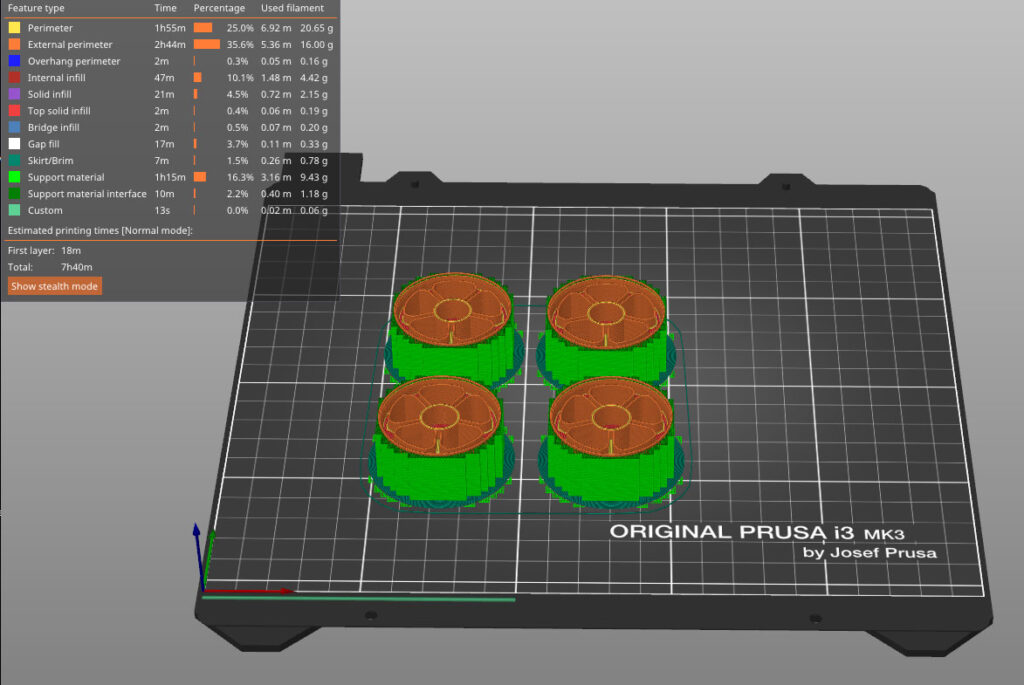

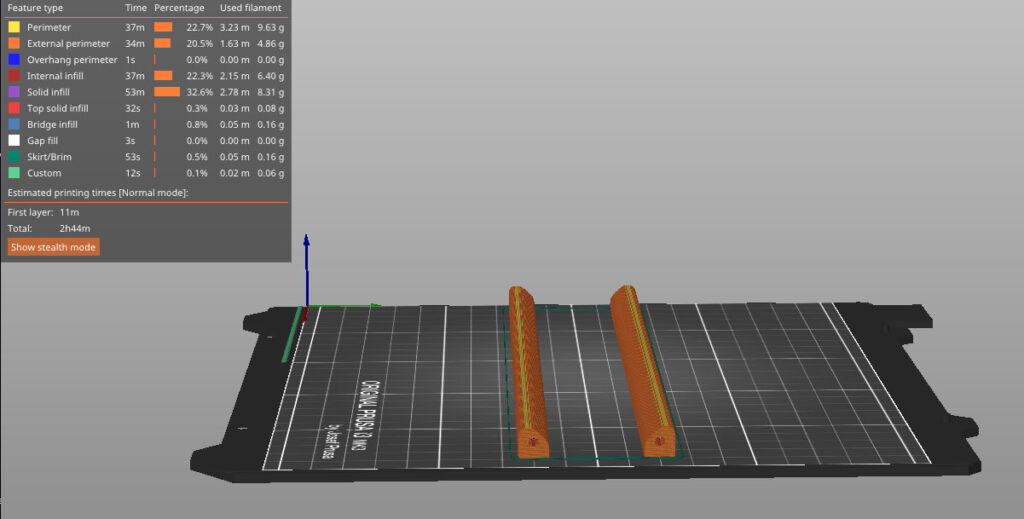

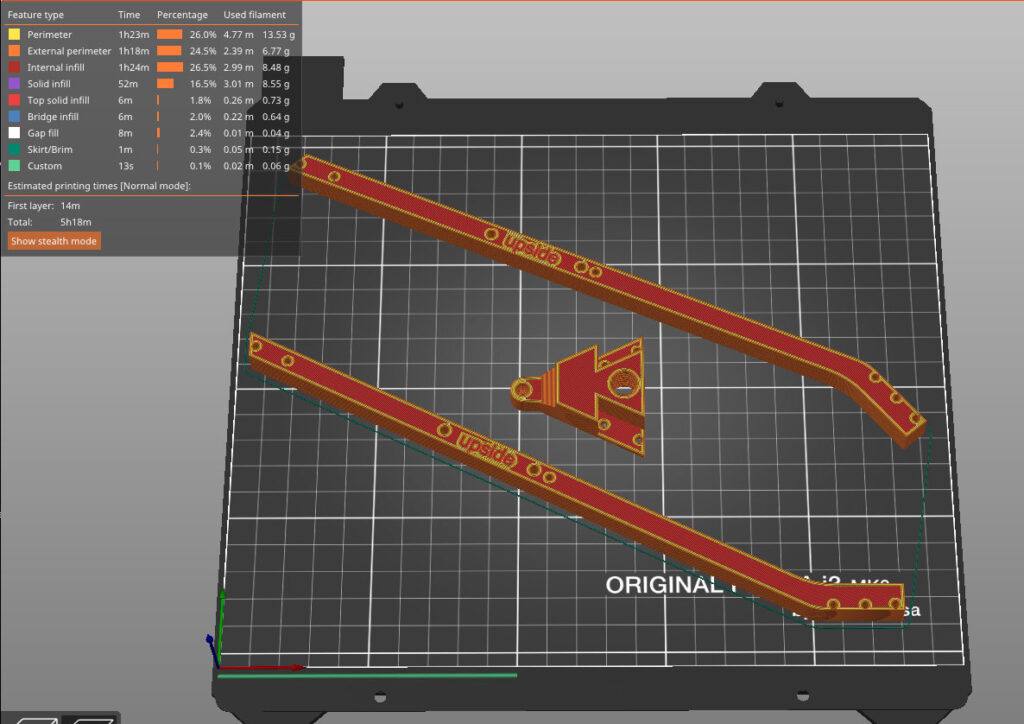

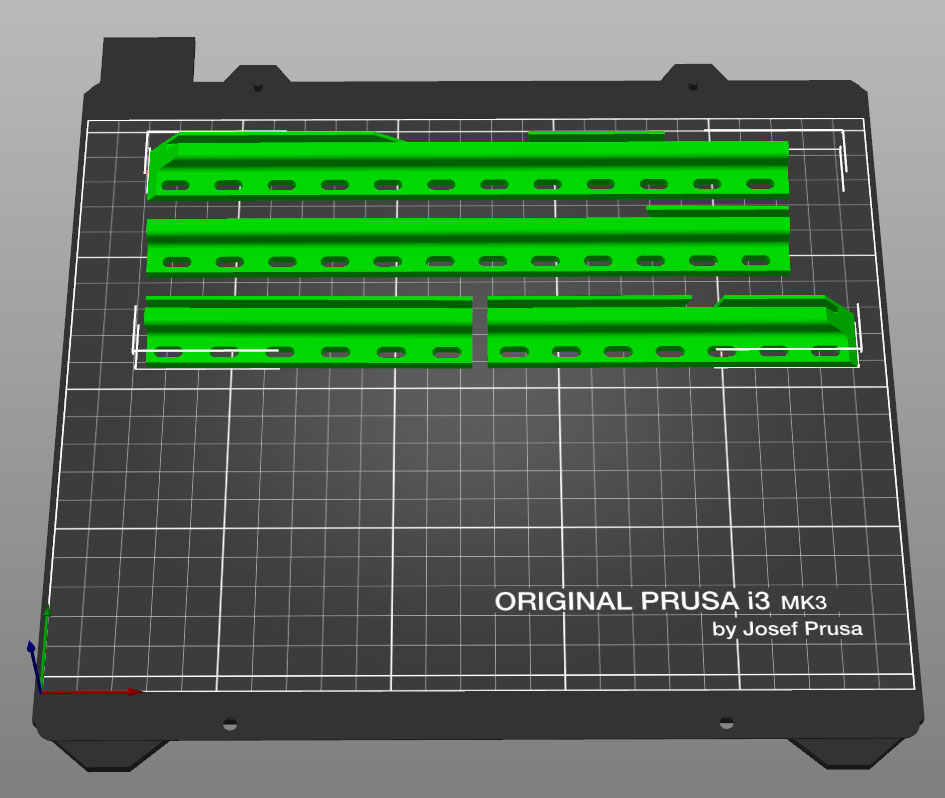

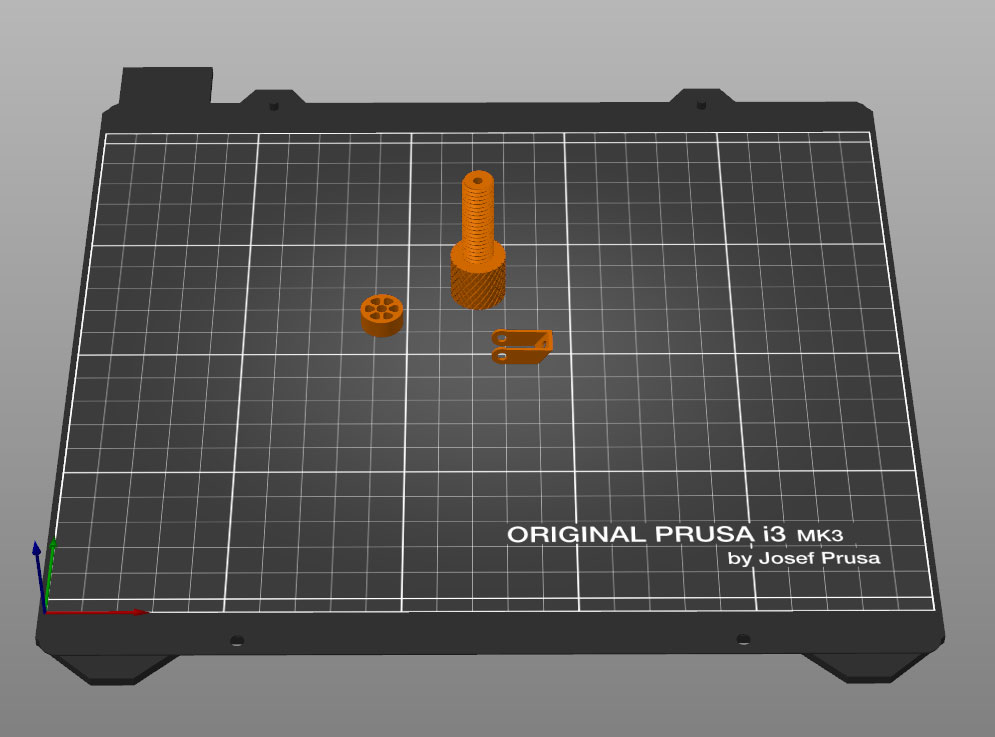

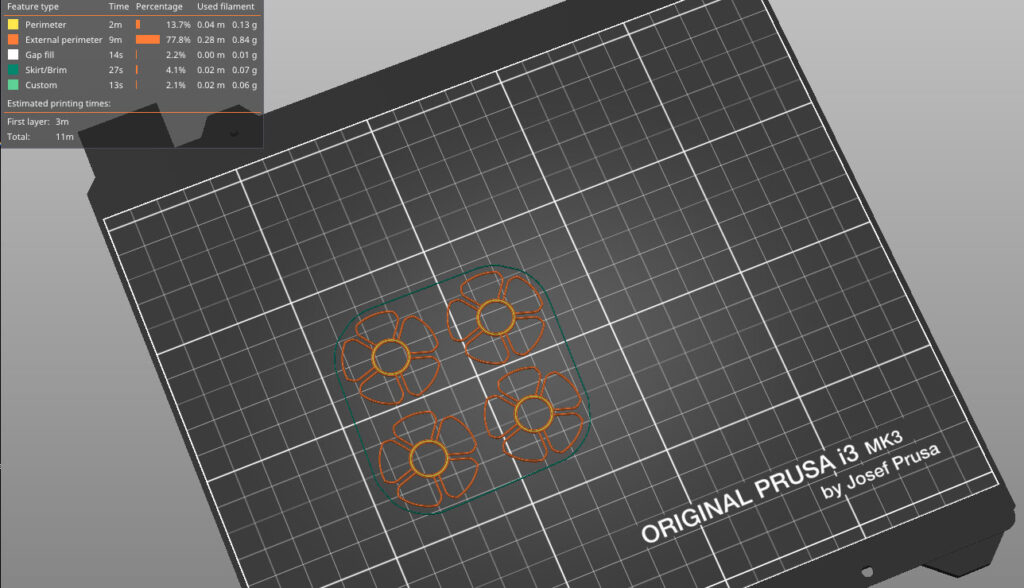

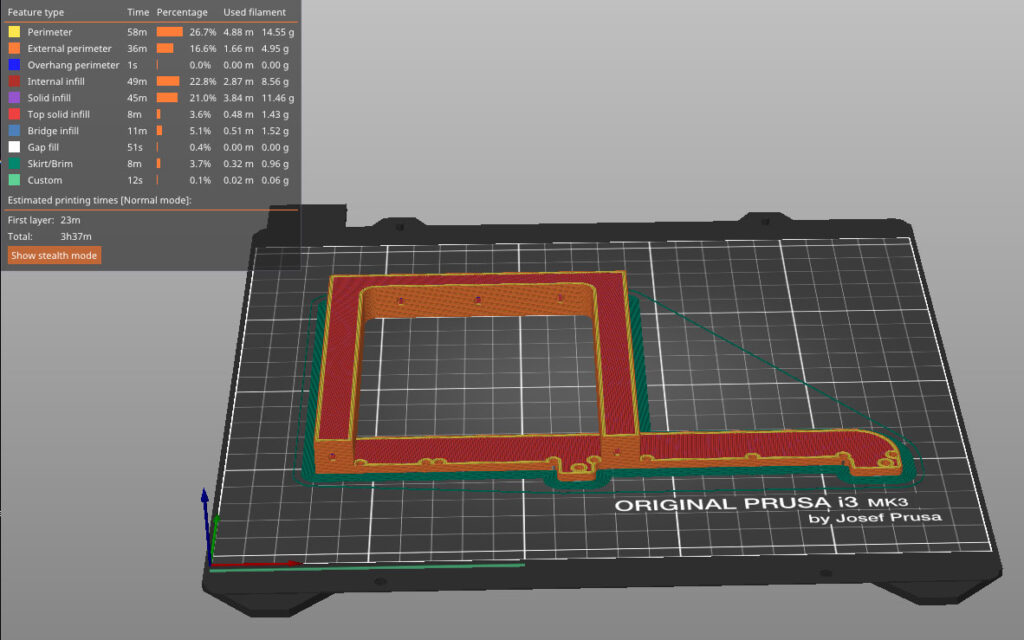

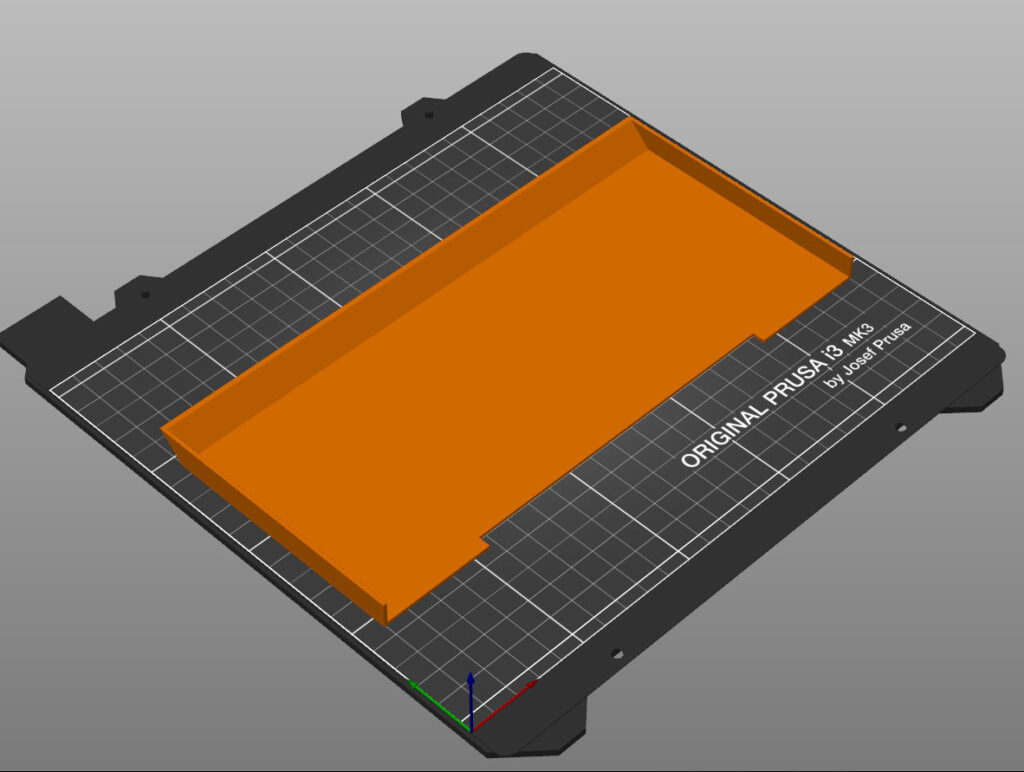

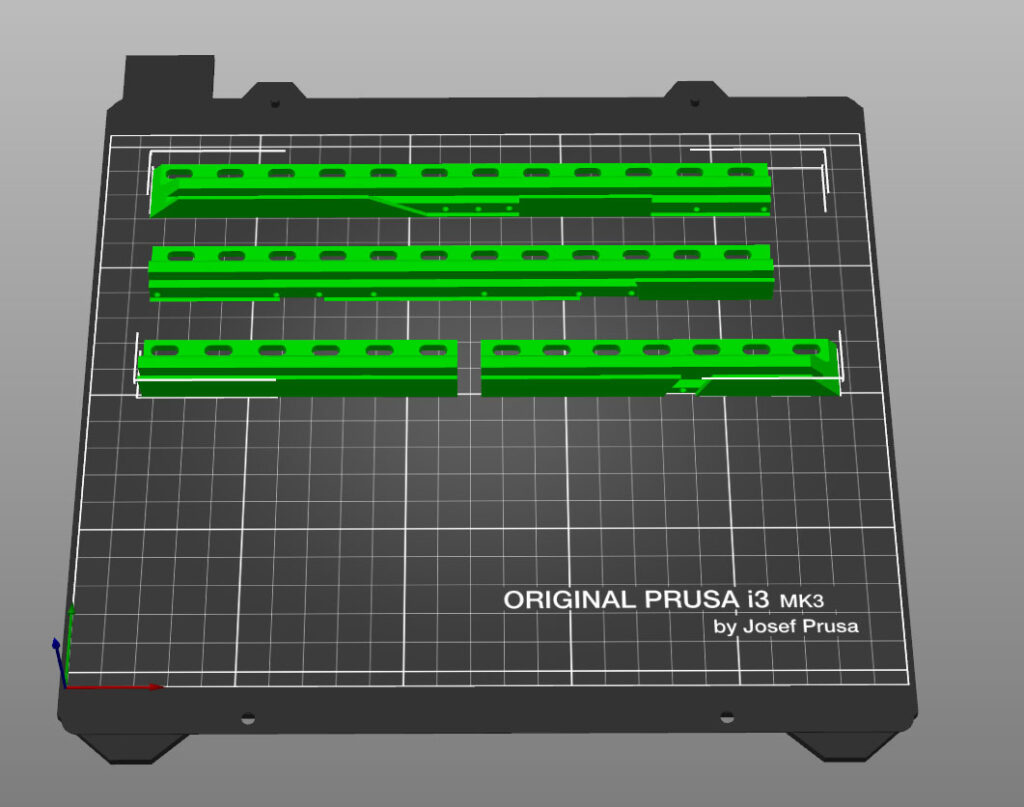

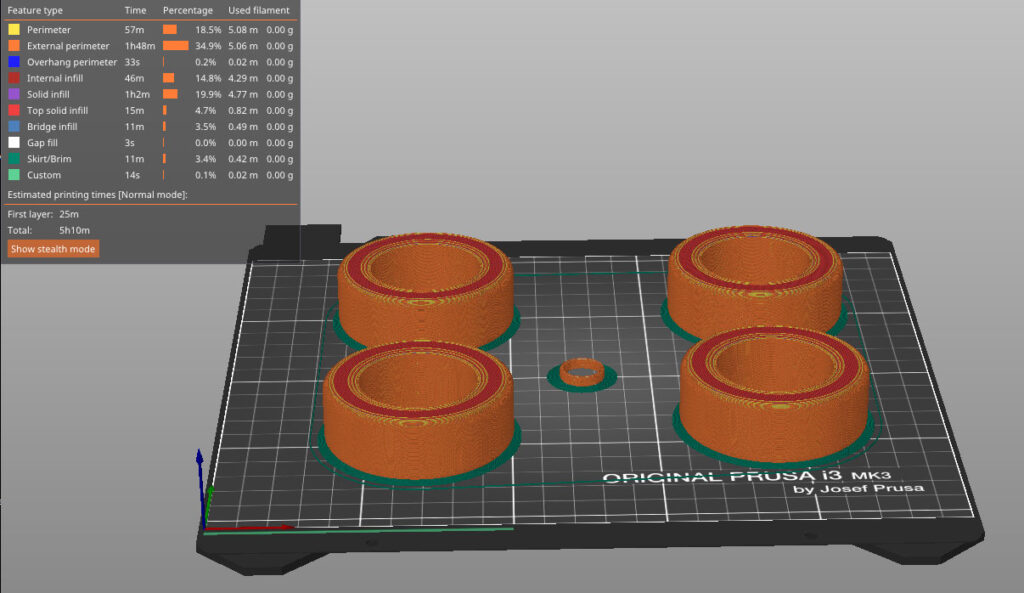

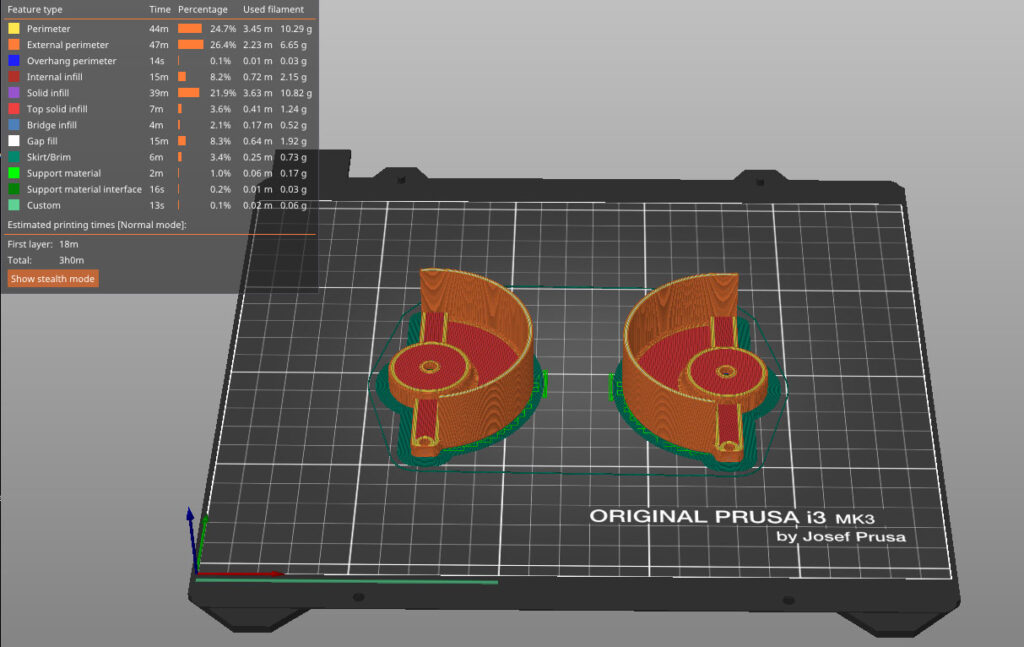

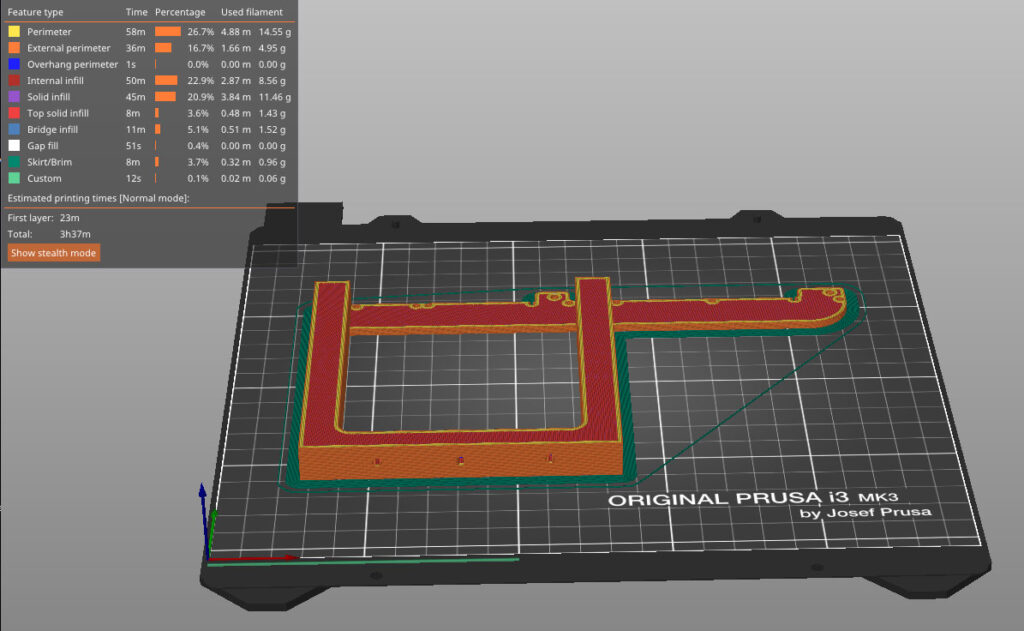

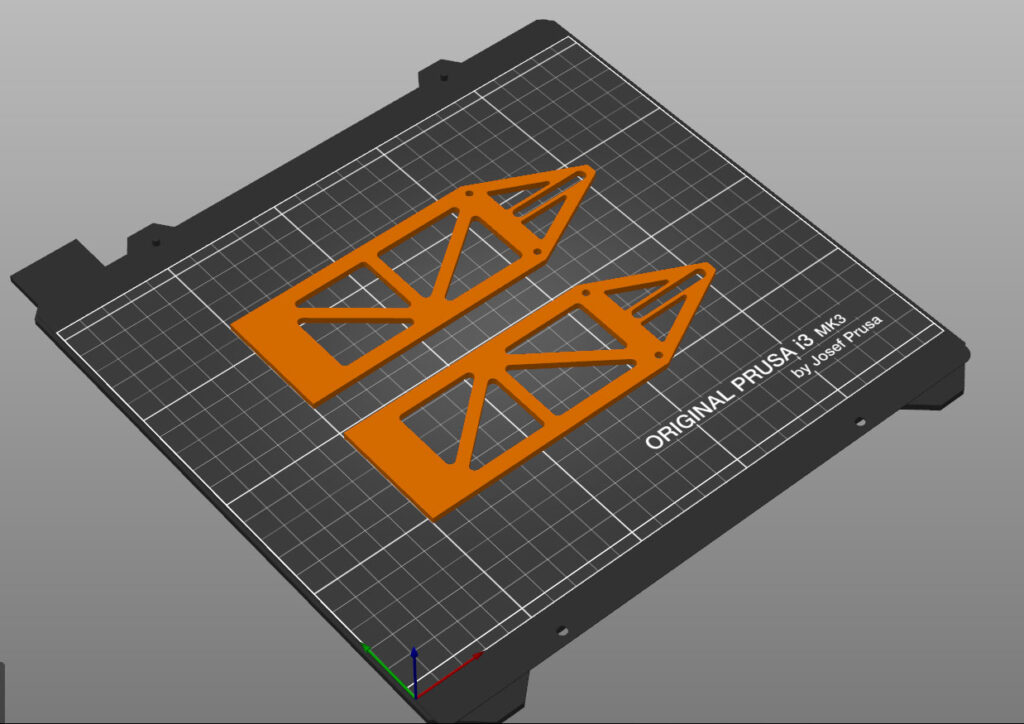

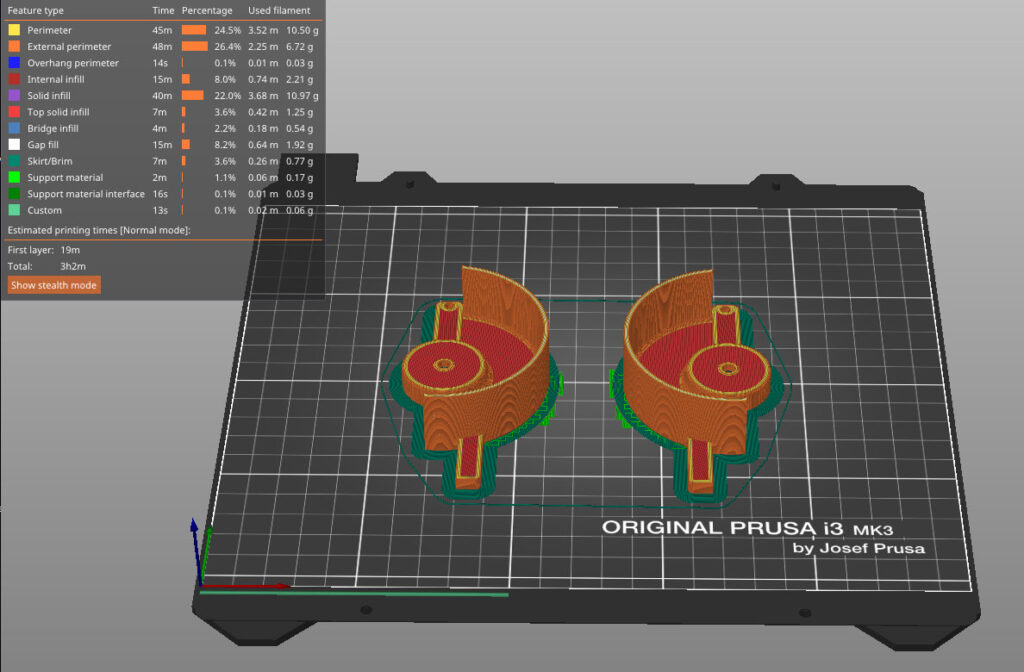

Slice Sample
Disclaimer
Do not use this file for commercial purposes without any permission. This model is designed to make FDM 3Dprinter, the parts have some additive markings, however, is no problem with those parts’ functions.
PDF file
The product can download from www.crafthub.io
